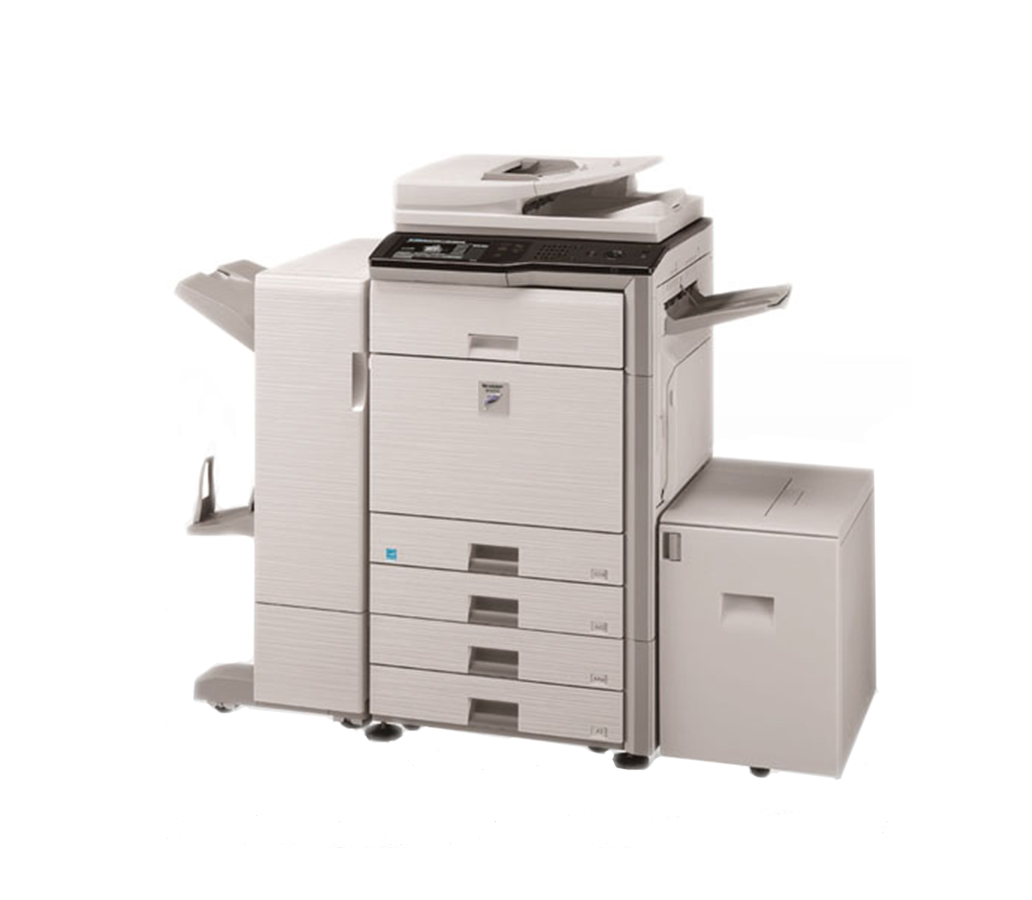

Smart MFPs with Colour Network Scanning [MX-M453N]
While the average B/W maintains workflow and keeps document management in check, the MX-M503N/M453N/M363N - Sharp's stepped-up B/W performer with colour network scanning - delivers upgraded function, low energy consumption, and reliable data protection.
Colour network scanning makes digitisation of paper-based documents as easy as making a copy, and higher resolution produces razor-sharp images for above-and-beyond print performance. Fast output and a high-speed 100-sheet DSPF (duplex single pass feeder) offer greater productivity, while efficiency gets a boost from Sharp OSA (Open Systems Architecture) workflow-enchancing solutions. Ease of use, compatibility with the latest network protocols and operating systems, environmentally friendly performance, and Sharp's industry-leading multi-layered security round out the pluses that make the MX-M503N/M453N/M363N a further evolution in B/W MFPs.
General
- Engine speed B/W (A4) : 45sheets
- Engine speed B/W (A3) : 22sheets
- Paper size : Min.-Max.A5R - A3W
- Paper weight : 56 - 209(g/m2)
- Paper capacity : 2 x 500sheets
- Paper capacity : Max.5,600
- Warm Up Time : 20 seconds
- Memory : 320MB
- Printer Memory : 1GB
- Harddisk capacity : 80GB
- Reverse Sigle Pass Feeder : 100sheets
- Power requirements : rated local AC voltage (Hz) : 220 - 240V, 50/60Hz
- Power consumption : 1,84(kW)
- Dimensions : 645 x 695 x 953mm
- Weight : 95kg
- Original paper size : A4 - A3
- First copy out time B/W : 3.9 seconds
- E-sort Std : Yes
- Continuous copy : max.999
- Resolution Scan B/W : 600 x 600dpi
- Resolution Scan Colour : 600 x 600dpi
- Resolution Print : 1200 x 1200dpi
- Gradation (equivalent levels) - B/W2
- Gradation (equivalent levels) - Colour256
- Zoom range : 25 - 400%
- Preset copy ratios: 10
- Scan method : Push scan and Pull scan
- Resolution push scan : 100, 200, 300, 400, 600dpi
- Resolution pull scan : 75, 100, 150, 200, 300, 400, 600dpi, 50 to 9600, custom
- File formats : XPS, TIFF, PDF, encrypted PDF, high-compression PDF, JPEG (colour only)
- Scanner utilities : Network Scan Tool, Sharpdesk, Sharp TWAIN
- Scan destination : Desktop
- Scan destination : FTP, Email
- Scan destination : Network folder
- Scan destination : USB memory
- Document filing capacity- main and custom folders : 20.000pages
- Document filing capacity- quick file folder : 10.000pages
- Stored jobs : Copy, print, direct print, scan, fax transmission
- Storage folders : Quick file folder, main folder, custom folder (max. 1000)
- Confidential storage : Yes
- Resolution : 1200 x 1200dpi
- Enhanced resolution : 1200 x 1200dpi
- Interface : USB 2.0, 10Base-T/100Base-TX/1000Base-T
- Supported OS Standard: Windows 98/ME/NT4.0 SP5 or later/2000/Server 2003/Server 2008/XP/Vista/7
- Supported OS Options : Mac OS 9.0-9.2.2/Mac OS X 10.2.8/10.3.9/10.4.11/10.5-10.5.8/10.6-10.6.2
- Network protocols : TCP/IP (IPv4 and IPv6), IPX/SPX (NetWare), NetBEUI, EtherTalk (AppleTalk)
- Printing protocols : LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, Novell Printserver application with NDS and Bindery, FTP for downloading print files, EtherTalk printing, IPP
- PDL : PCL 5e/6, OPT PS3 emulation, XPS
- Available fonts: 80 (PCL), 136 (PS3)
- Compression method : MH/MR/MMR/JBIG
- Communication protocol : Super G3
- Transmission time : 3 seconds
- Modem Speed : 33.600 - 2.400(bps)
- Transmission resolution : 203,2 x 97,8 dpi / Extra Fine 406,4 x 391 dpi
- Document Size : A5 - A3
- Memory : 8MB
- Grey Scale levels : 256
- Dial Registration; rapid/speed dial : 1000
- Broadcast Transmission : max.500 destinations
- Output Capacity : max.500 - 4000 sheets
- Multi- staple : max.50 sheets
- Saddle Stitch
- Off-set shifting
- Hole punch
