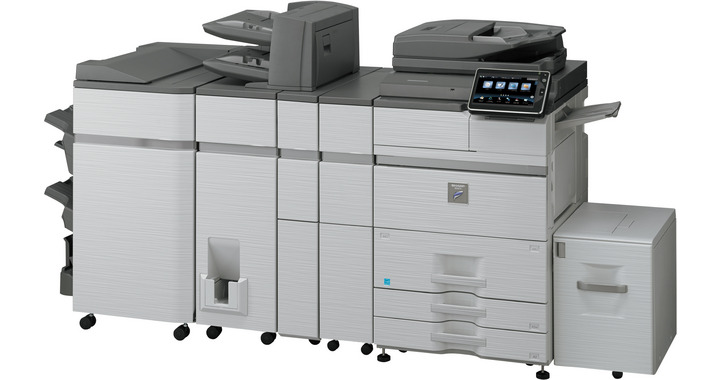

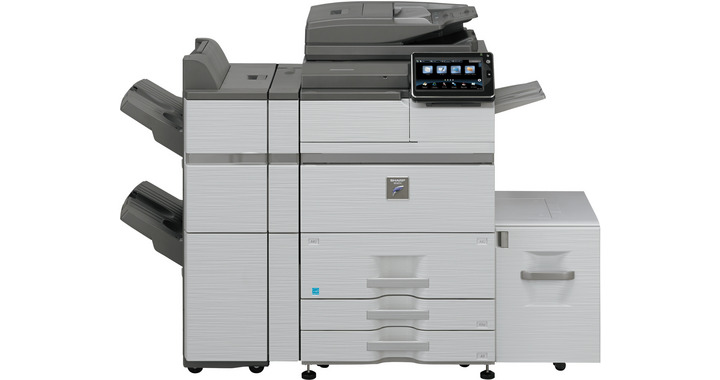

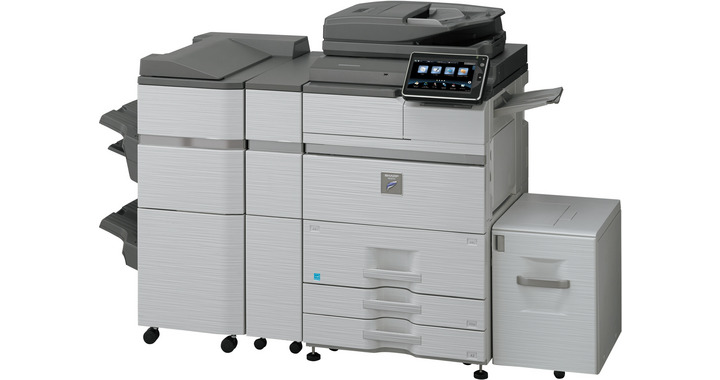

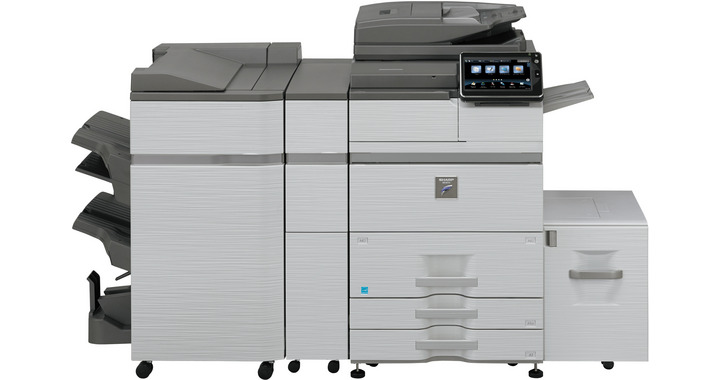

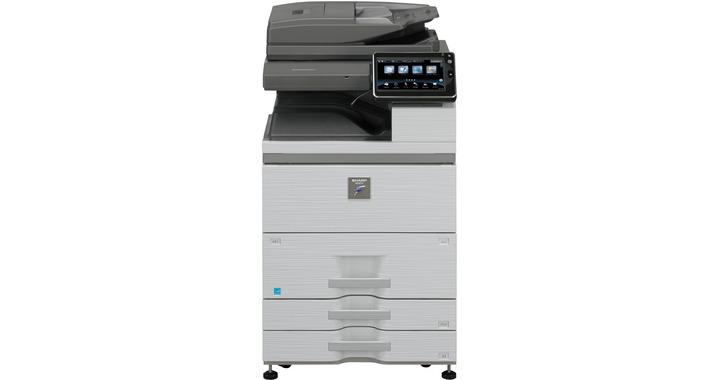

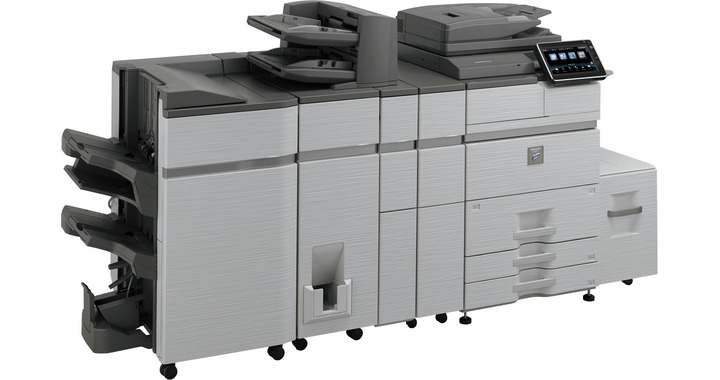

The MX-M654N is a fast and versatile, high volume A3 black and white departmental MFP that delivers all the quality, flexibility and reliability you need. Not only does it produce exceptional quality images with professional finishing at speeds of up 65 pages per minute but everything about it has been designed to increase workgroup productivity.
Complex jobs can be handled with ease thanks to a generous paper capacity; fast 200 ipm two-sided colour scanning; standard 150-sheet DSPF and a large colour touch screen. And with features like a 320 GB Hard Drive; powerful productivity tools; standard multi-layered security and a variety of finishing options including a 50-sheet or 100-sheet staple finisher, saddle stitch finisher, folder and inserter, the MX-M654N can meet all your document needs in one flexible solution.
Sharp OSA is standard which opens up access to a wide range of third party software solutions. The MX-M654N is also environmentally responsible with several energy saving features and a TEC value that is among the lowest in this class.
Engine speed B/W ppm (A4): 65
Engine speed B/W ppm (A3): 34
Paper size: Min.-Max.: A5R - A3
Paper weight (g/m2): 55 - 300
Paper capacity:Std (sheets): 3200
Paper capacity: Max. (sheets): 6700
Warm Up Time (sec.): 20
Memory printer min/max (MB): 3072 / 4096
Harddisk: STD
Harddisk capacity (GB): 320
Duplex: STD
Power requirements - rated local AC voltage (Hz): 220 - 240V, 50 / 60Hz
Power consumption (kW): 1,84
Dimensions (mm): 663 x 772 x 1218
Weight (Kg): 166
Original paper size (Max.): A3
First copy out time B/W (sec.): 3,9
E-sort Std: Yes
Continuous copy (Max. copies): 9999
Resolution Scan B/W (dpi): 600 x 600, 600 x 400, 600 x 300
Resolution Print (dpi): 1200 x 1200, 600 x 600, 9600 (equivalent) x 600
Gradation (equivalent levels) - B/W: 256
Zoom range (%): 25 - 400
Preset copy ratios: 10
Original capacity (sheets): 150
Network Scanner (Standard / Option): STD
Scan method Push scan and Pull scan: Yes
Resolution push scan (dpi): 100, 150, 200, 300, 400, 600
Resolution pull scan (dpi): 75, 100, 150, 200, 300, 400, 600, 50 - 9600 custom
File formats: TIFF, PDF, PDF/A-1b, Encrypted PDF, Compact PDF, JPEG, XPS
Scanner utilities: Sharpdesk, Sharpdesk Mobile
Scan destinations Desktop: Yes
Scan destination FTP, Email: Yes
Scan destination Network folder: Yes
Scan destination USB memory: Yes
Document filing (Standard / Option): STD
Document filing capacity- main and custom folders (pages): 20.000
Document filing capacity- quick file folder (pages): 10.000
Stored jobs: Copy, Print, Scan, Fax transmission
Storage folders: Quick File Folder, Main Folder, Custom Folder (max 1.000)
Confidential storage: Yes
Resolution (dpi): 1200 x 1200, 600 x 600, 9600 (equivalent) x 600
Enhanced resolution (dpi): 1200 x 1200
Network Printer (Standard / Option): STD
Interface Std/Opt: USB 2,0, 10Base-T, 100Base-TX, 1000Base-T
Supported OS Standard: Windows Server 2003/2008/2008R2/2012/2012R2, Windows Vista, Windows 7/8/8.1, Mac OS X 10,4/10,5/10,6/10,7/10,8/10,9
Network protocols: TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
Printing protocols: LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, EtherTalk printing, IPP
PDL Std/Opt: STD: PCL6 emulation, Adobe PostScript 3 OPT: XPS
Available fonts: 80 (PCL), 139 (PS3)
Fax (Standard / Option): OPT
Compression method: MH/MR/MMR/JBIG
Communication protocol: Super G3/G3
Transmission time (sec): 3
Modem Speed (bps): 33.600 - 2.400
Transmission resolution: 203,2 x 97,8 - 406,4 x 391
Document Size (Min): A5
Document Size (Max): A3
Memory (MB): 1024
Grey Scale levels: 256
Dial Registration; rapid/speed dial: 1.000
Broadcast Transmission (max. destinations): 500
Output Capacity Max.: 4250
Staple Capacity (sheets) Max.: 100
Saddle Stitch: OPT
Off-set shifting: STD
Hole punch: OPT
